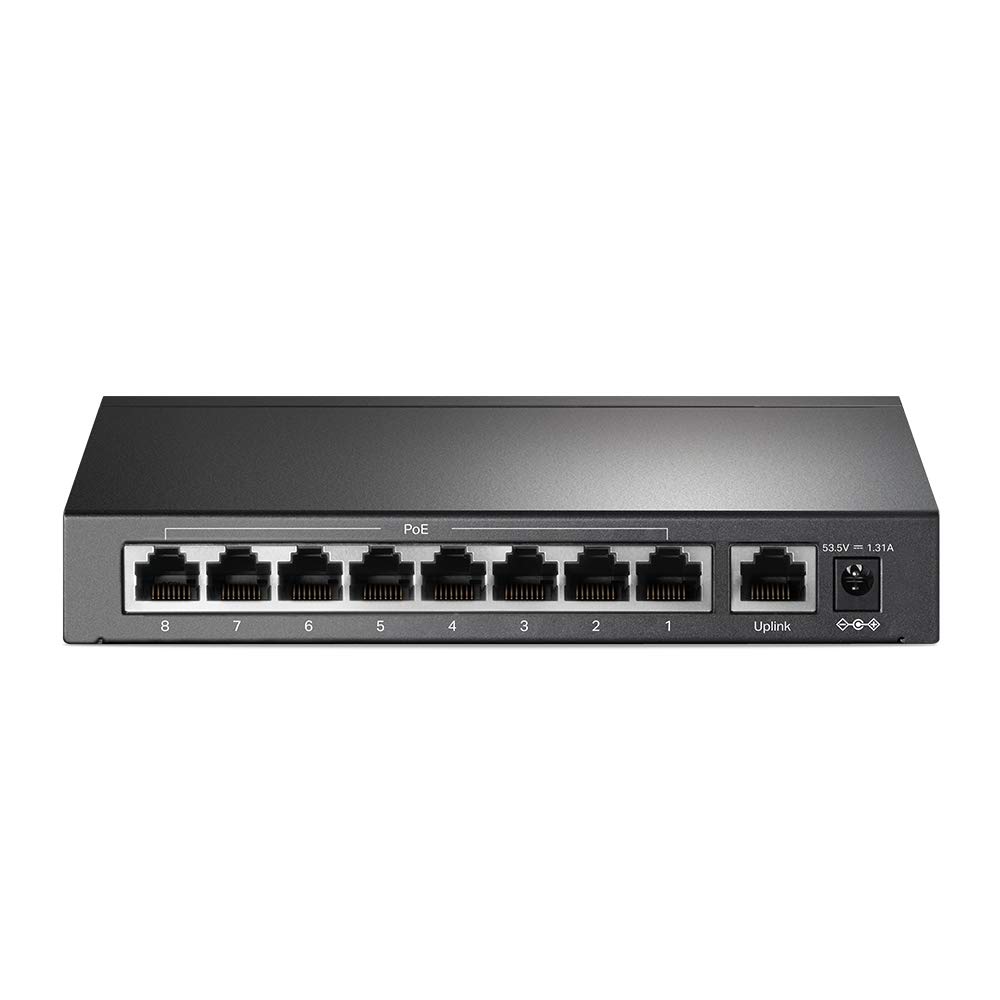

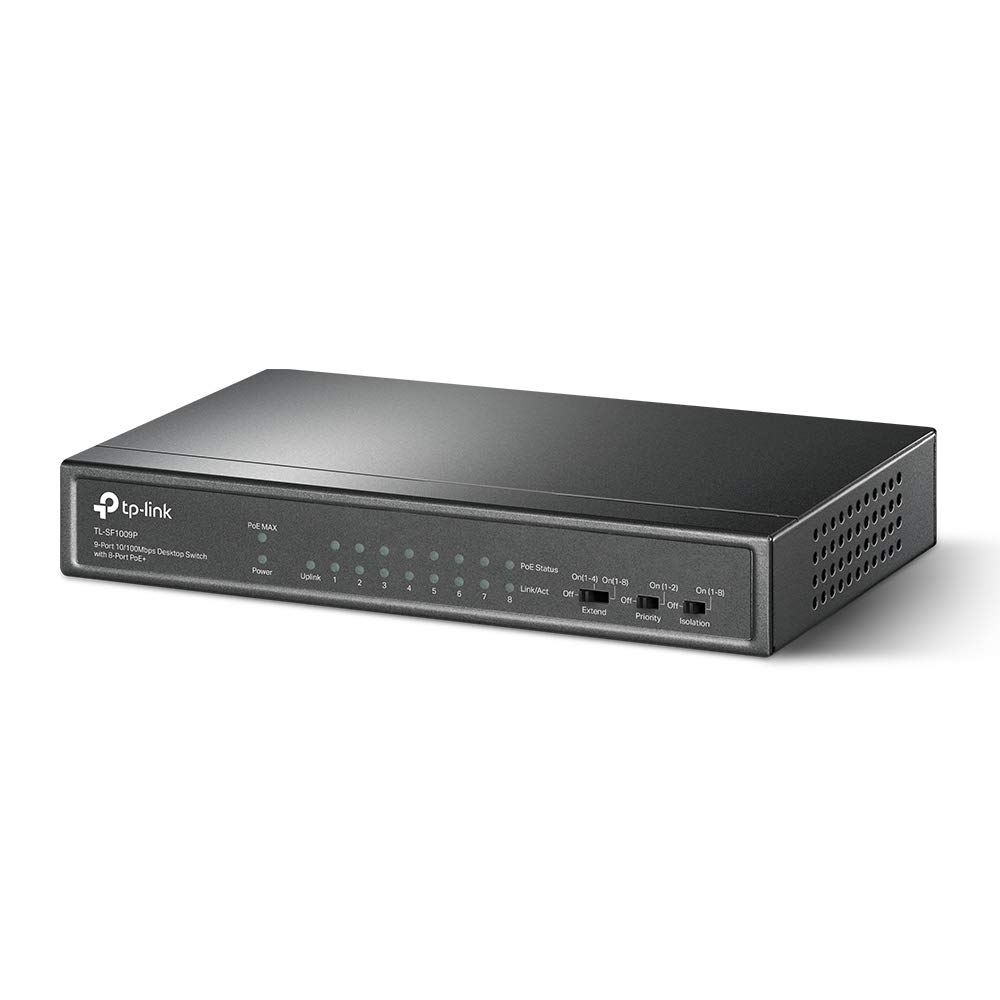

9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

9× 10/100 Mbps RJ45 ports
8× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port

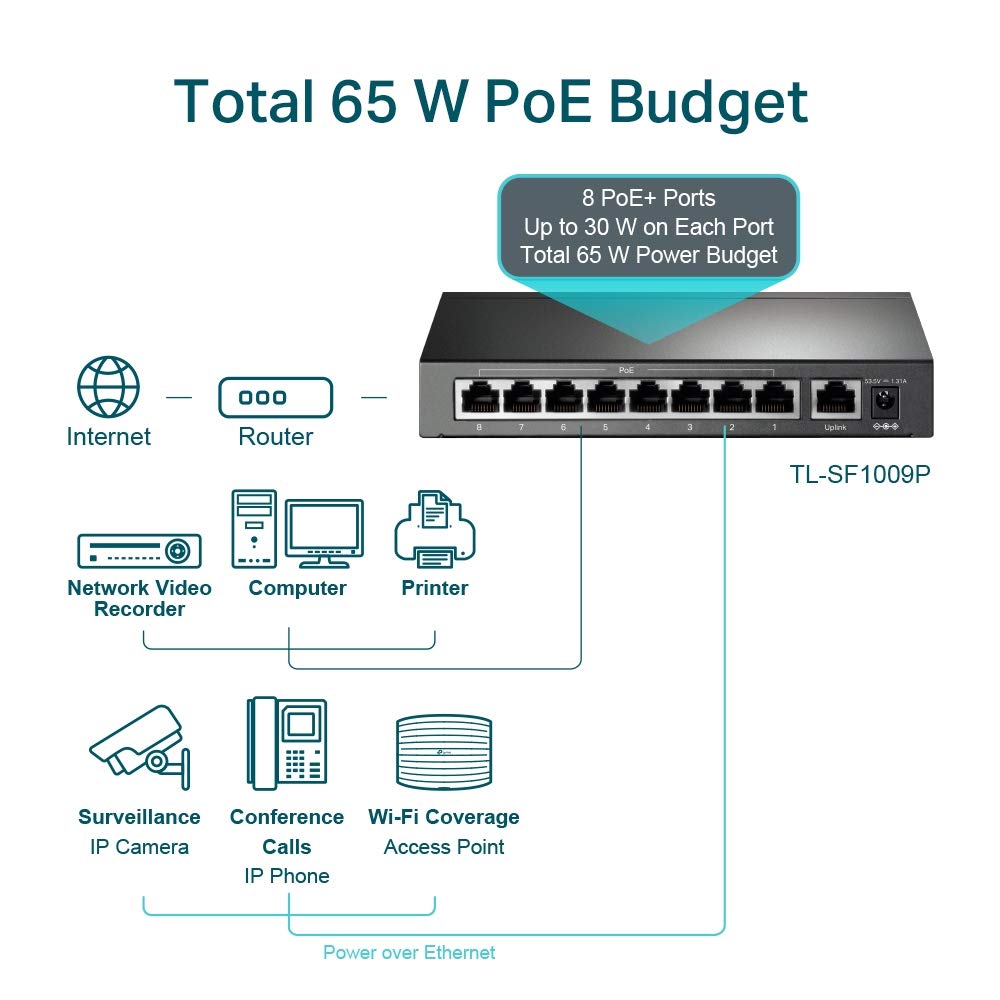

Supports PoE Power up to 65 W for 8 PoE ports*
Up to 250 m data and power transmitting range under Extend Mode**
Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
Isolation Mode allows one-click client traffic separation for higher security and performance

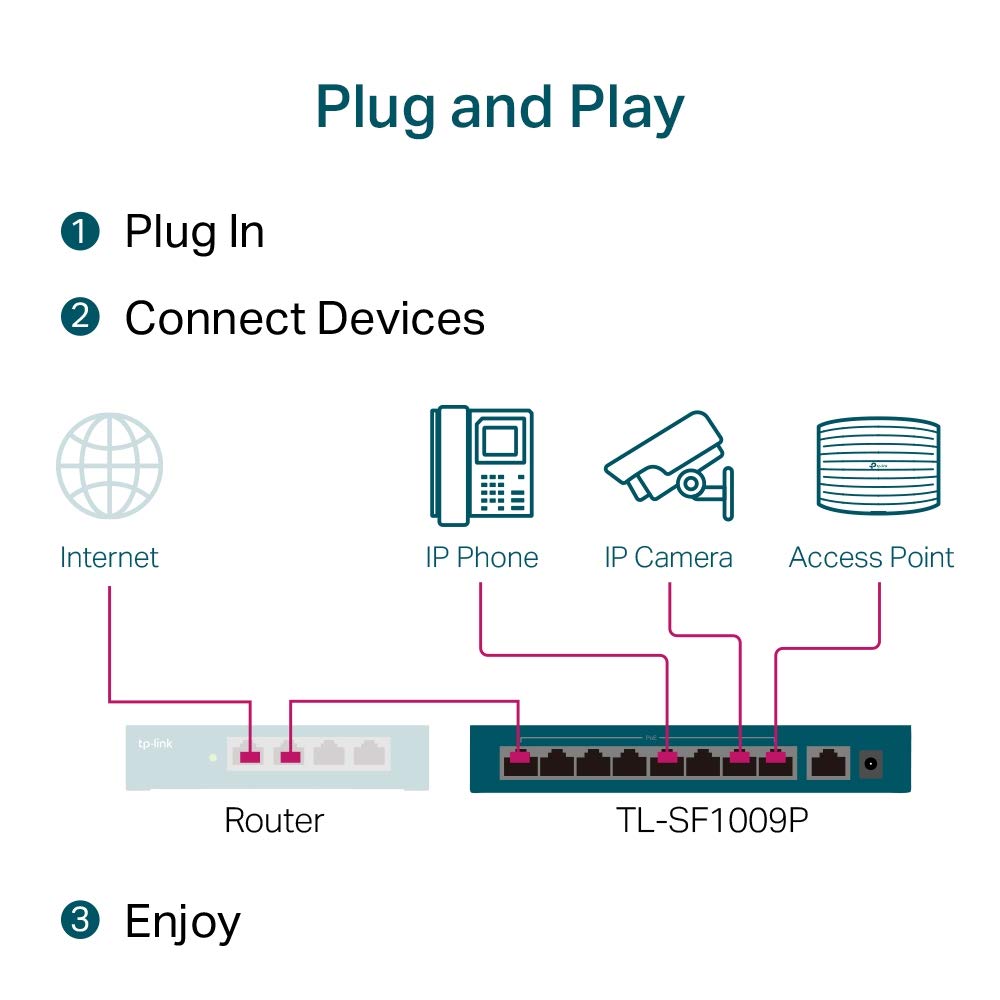

Plug and play with no configuration required

HARDWARE FEATURES
Interface	• 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports) • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	Yes
External Power Supply	External Power Adapter (Output: 53.5VDC / 1.3A)
Packet Forwarding Rate	1.3392 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 65 W
Mac Address Table	2K
Jumbo Frame	2 KB
Switching Capacity	1.8 Gbps
Dimensions ( W x D x H )	6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
Max Power Consumption	• 3.6 (no PD connected) • 77.1 (with 65 W PD connected)
Max Heat Dissipation	• 12.3 BTU/h (no PD connected) • 262.8 BTU/h (with 65 W PD connected)

Transmission Method

Store-And-Forward

Advanced Functions

• Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)
• Priority Mode Button (Ports 1–2)
• Isolation Mode Button (Ports 1–8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

Certification

FCC, CE, RoHS

Package Contents

• TL-SF1009P
• Power Adapter
• Installation Guide

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Description

Brand Name	TP-Link
Data Transfer Rate	100 megabytes_per_second
Ean	6935364052966 , 0767531599297
External Testing Certification	Não aplicável
Item Weight	500 grams
Model Number	TL-SF1009P
Number of Ports	9
Part Number	TL-SF1009P
UPC	767531599297

Brand	‎TP-Link
Manufacturer	‎TP-Link Technologies
Country of Origin	‎India
Model Number	‎TL-SF1009P
Item Weight	‎500 g
Product Dimensions	‎9.8 x 2.7 x 17 cm; 500 Grams
Item model number	‎TL-SF1009P
Item Height	‎17 Centimeters
Item Width	‎2.7 Centimeters
Number of Ports	‎9
Data Transfer Rate	‎100 Megabytes Per Second
Hardware Platform	‎PC
Are Batteries Included	‎No
Certification	‎Não aplicável
