TP-Link N300 Wireless N Wall-Plate Mounting Access Point, Simply Managed by Cloud Access and Omada app (EAP115-WALL)

₹2,340.00

300Mbps Wireless N Wall-Plate Access Point

Integrated into Omada SDN: Centralized Cloud Management and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

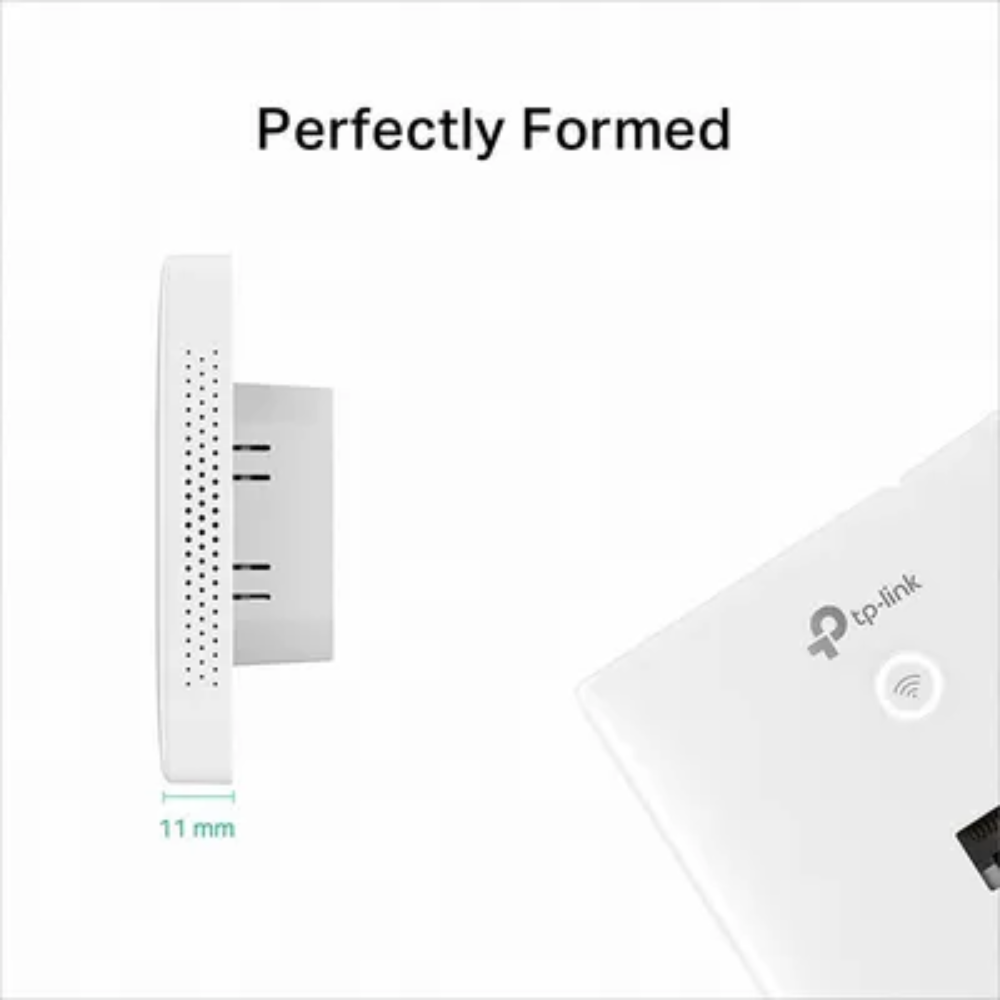

Elegant Appearance: Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.

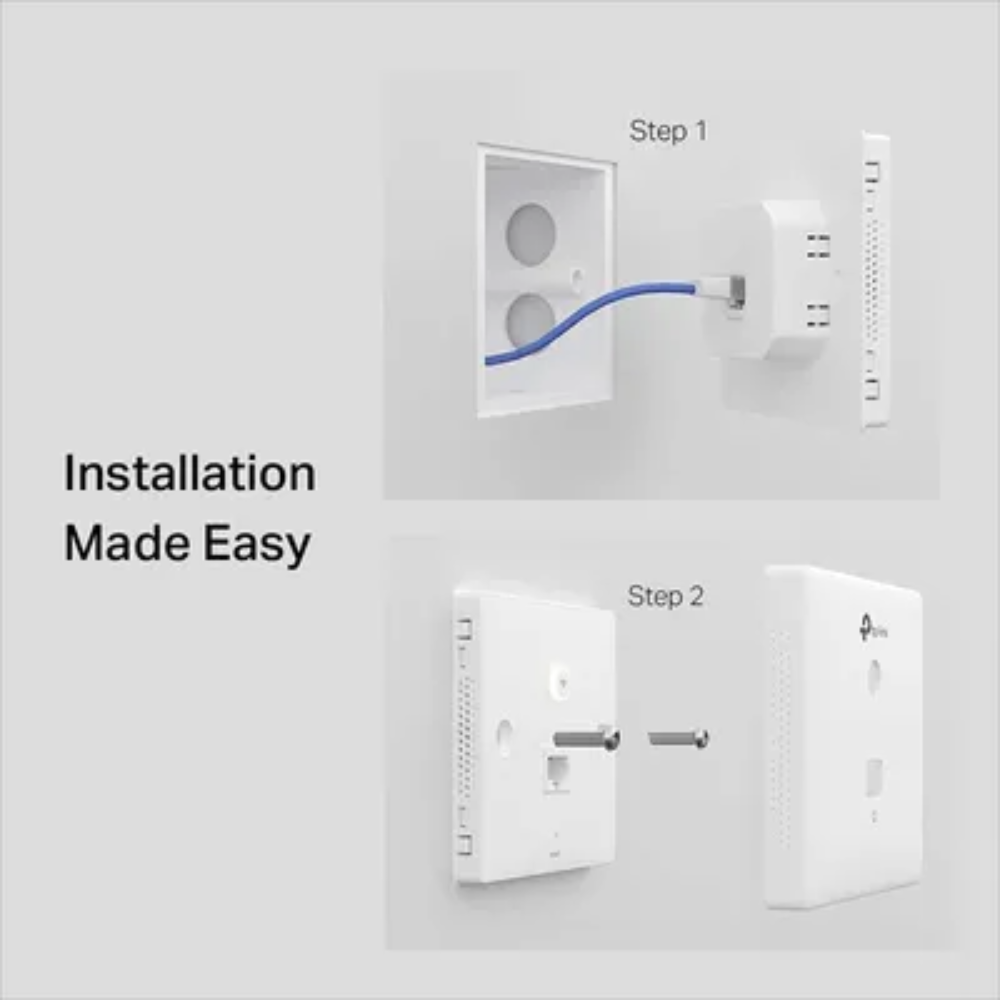

Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af PoE support.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

HARDWARE FEATURES
Interface	• Uplink: 1× 10/100 Mbps Ethernet Port • Downlink: 1× 10/100 Mbps Ethernet Port
Physical Security Lock	No
Button	• LED/Wi-Fi Button • RESET
Power Supply	PoE (IEEE 802.3af)
Power Consumption	2.8 W
Dimensions ( W x D x H )	3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)
Antenna Type	Internal 2× 1.8 dBi Omni
Mounting	Wall Plate Mounting
Hardware Watch Dog	Yes

WIRELESS FEATURES
Wireless Client Capacity	100+*
Wireless Standards	IEEE 802.11n/g/b
Frequency	2.4 GHz
Signal Rate	• 11n: Up to 300 Mbps (dynamic) • 11g: Up to 54 Mbps (dynamic) • 11b: Up to 11 Mbps (dynamic)
Transmit Power	CE： ≤20 dBm (2.4 GHz)
Wireless Functions	• Multiple SSIDs (Up to 8 SSIDs) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Load Balance • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security	• Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Local LAN port based VLAN • Rogue AP Detection • 802.1X Support • 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, or Omada Software Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1,v2c
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes

OTHERS
Certification	CE, RoHS
Package Contents	• 300 Mbps Wireless N Wall-Plate Access Point EAP115-Wall • Installation Guide • Mounting Screw
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

Description

About this item

Integrated into Omada SDN — Zero-Touch Provisioning Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management — Cloud access and Omada app for ultra convenience and easy management.
Elegant Appearance — Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.
Easy Installation and PoE Support — Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af PoE support.
Secure Guest Network — Along with multiple authentication options SMS Facebook Wi-Fi Voucher, etc.and abundant wireless security technologies.
