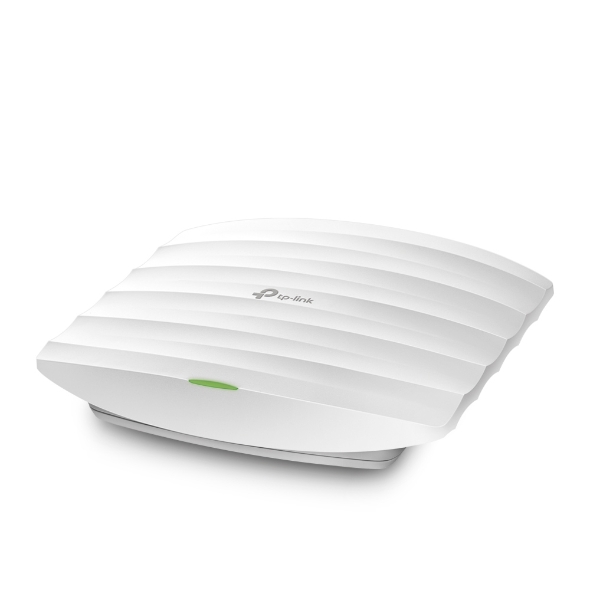

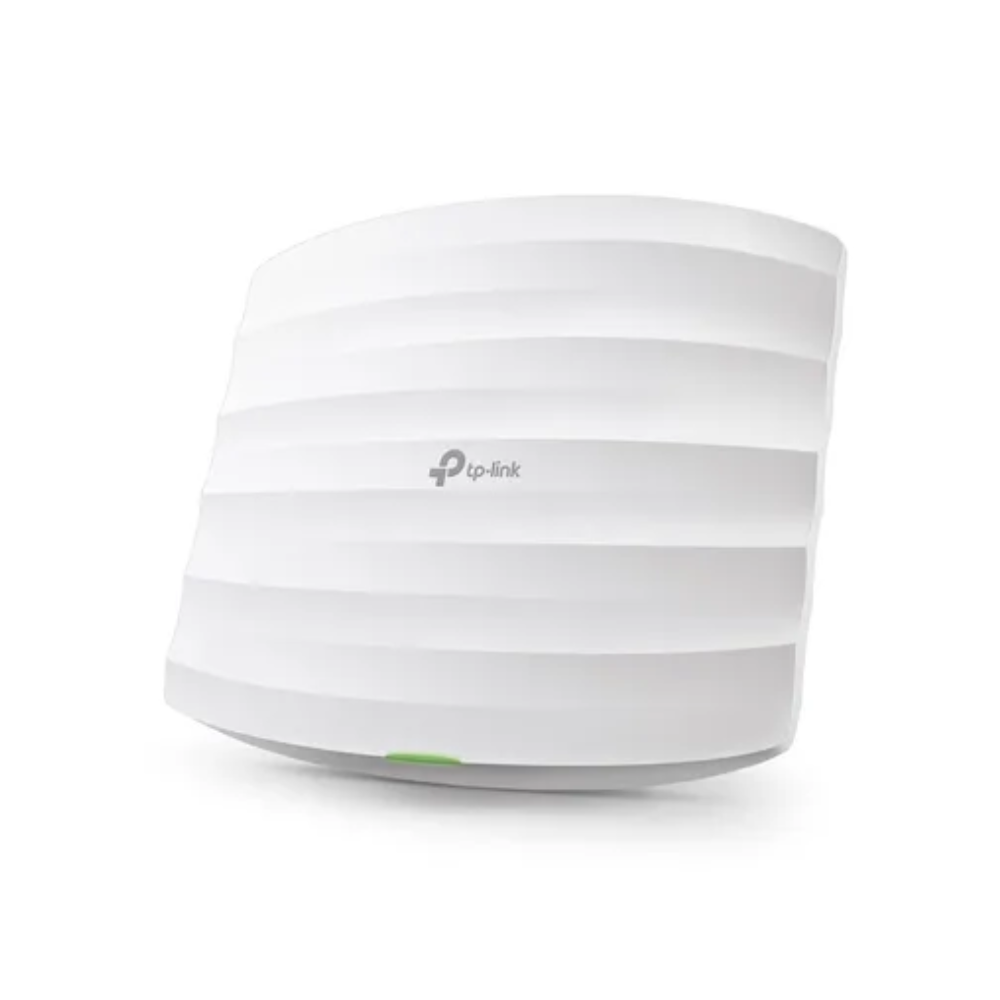

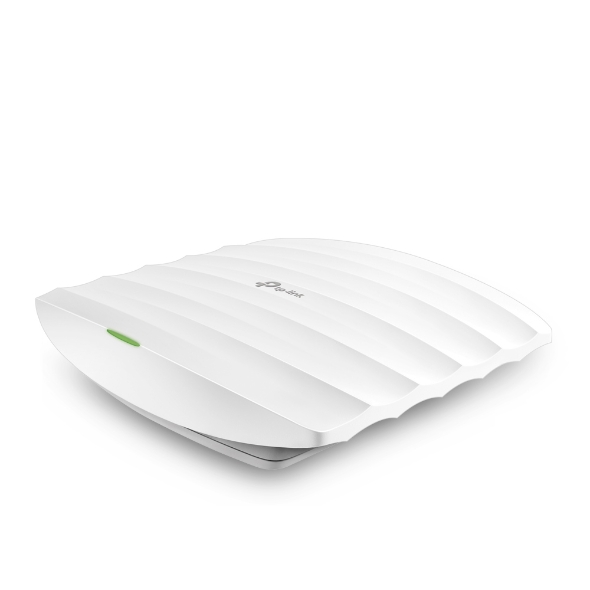

Name: TP-LINK (EAP225) AC1350 Dual Band Wireless Ceiling Mount Access Point, POE powered, Gigabit LAN , High Performing Access Point
SKU: 8948
Price: 7299.00 INR
Availability: InStock

TP-LINK (EAP225) AC1350 Dual Band Wireless Ceiling Mount Access Point, POE powered, Gigabit LAN , High Performing Access Point

₹7,299.00

Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz^△ and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.^†
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)^‡, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.*
PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included)^△ for flexible installations.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.

HARDWARE FEATURES
Interface	Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE)
Physical Security Lock	Yes
Button	Reset
Power Supply	• 802.3af/at PoE • 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption	EU: 9.7W US: 12.1W
Dimensions ( W x D x H )	8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
Antenna Type	3 Internal Omni • 2.4 GHz: 4 dBi • 5 GHz: 5 dBi

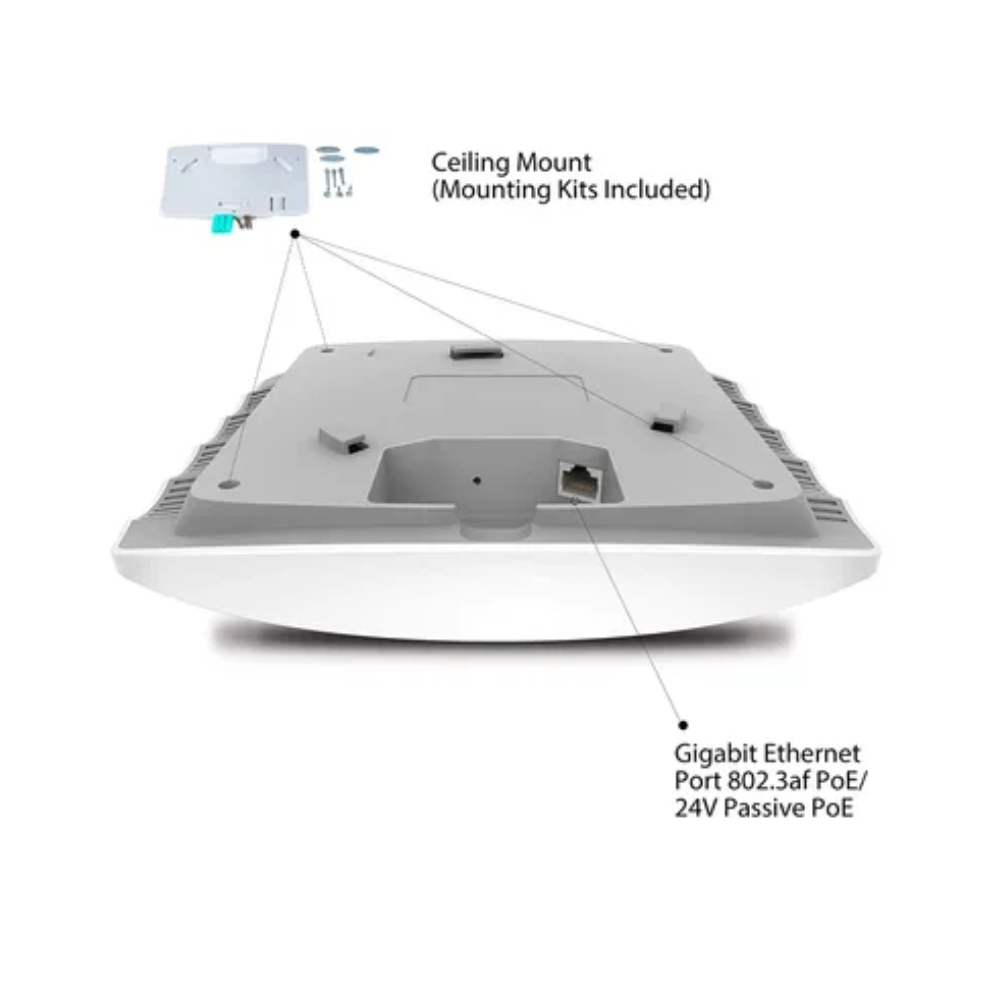

Mounting	Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES
Wireless Client Capacity	220+**
Wireless Standards	IEEE 802.11ac/n/g/b/a
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz:Up to 867 Mbps • 2.4 GHz:Up to 450 Mbps
Wireless Functions	• Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming* • Omada Mesh* • Band Steering • Load Balance • MU-MIMO • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security	• Captive Portal Authentication* • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support
Transmission Power	• CE: ≤20 dBm(2.4 GHz, EIRP) ≤23 dBm(5 GHz, EIRP) • FCC: ≤24 dBm(2.4 GHz) ≤22 dBm(5 GHz)

MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Hardware Controller OC300 • Omada Hardware Controller OC200 • Omada Software Controller • Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)
Cloud Access	Yes, through • OC300 • OC200 • Omada Software Controller • Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1,v2c
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)

OTHERS
Certification	CE, FCC, RoHS

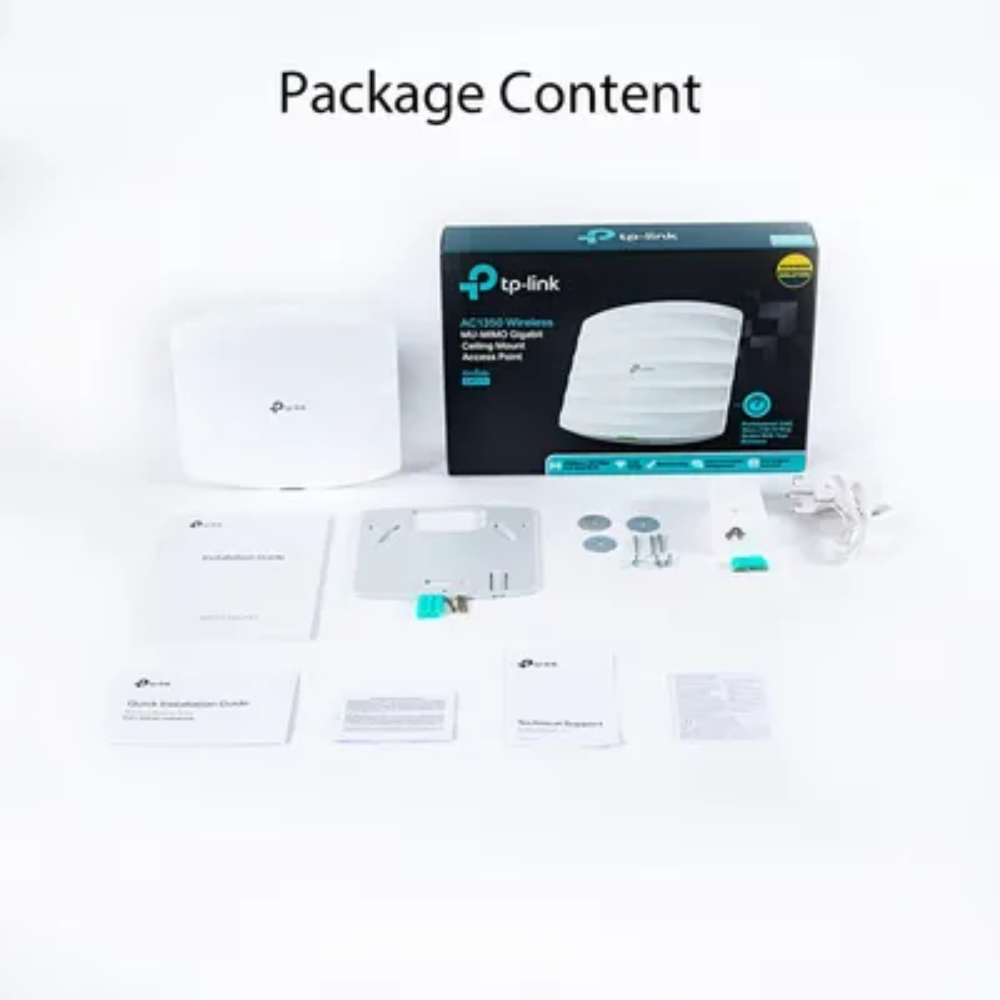

Package Contents	• AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225 • Passive PoE Adapter • Power Cord • Mounting Kits • Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

Description

Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz^△ and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.^†
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)^‡, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.*
PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included)^△ for flexible installations.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.

Brand	‎TP-Link
Model	‎EAP225(UK)
Product Dimensions	‎18 x 47.5 x 18 cm; 460 Grams
Item model number	‎EAP225(UK)
Colour Screen	‎No
Wattage	‎12.6 Watts
Batteries Included	‎No
Batteries Required	‎No
Data Transfer Rate	‎1.3 Gigabits Per Second
Wireless Type	‎802.11n, 802.11b, 802.11a, 802.11g, 802.11ac
GSM frequencies	‎5 GHz
Includes Rechargable Battery	‎No
Supports Bluetooth Technology	‎No
Programmable Buttons	‎No
Country of Origin	‎China
Item Weight	‎460 g
