TP-Link EAP115 N300 Wireless Ceiling Mount Access Point,

₹2,299.00

Integrated into Omada SDN: Centralized Cloud Management and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.*
PoE Support: Supports Power over Ethernet (802.3af/at) for convenient deployment.
Easy Installation: Simple mounting design for easy attachment to a wall or ceiling.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.*
Load Balancing: Limit the number of users on each access point and remove devices with weak reception to keep your Wi-Fi running at peak performance.
Scheduling: Automatically reboot the access point and turn on or off the Wi-Fi at the time you set.

HARDWARE FEATURES
Interface	1× Fast Ethernet (RJ-45) Port (Support IEEE802.3af PoE)
Button	Reset
Power Supply	802.3af PoE or external 9VDC/0.6A power supply
Power Consumption	2.8 W
Dimensions ( W x D x H )	7.5×6.8×1.2 in (189.4×172.3×29.5mm)
Antenna Type	Internal 2× 4 dBi Omni
Mounting	Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES
Wireless Client Capacity	100+**
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency	2.4–2.4835 GHz
Signal Rate	• 11n: Up to 300Mbps(dynamic) • 11g: Up to 54Mbps(dynamic) • 11b: Up to 11Mbps(dynamic)
Reception Sensitivity	• 300M: -71dBm@10% PER • 150M: -75dBm@10% PER • 54M: -78dBm@10% PER • 11M: -93dBm@8% PER • 6M: -92dBm@10% PER • 1M: -96dBm@8% PER
Wireless Functions	• Multiple SSIDs (Up to 8 SSIDs) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security	• Captive Portal Authentication • Access Control • Wireless MAC Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power	• CE: ≤19 dBm (EIRP) • FCC: ≤21 dBm

MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1,v2c
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• 300Mbps Wireless N Ceiling Mount Access Point EAP115 • Power Adapter • Mounting Kits • Installation Guide
System Requirements	Microsoft Windows 11/10/8/7/Vista/XP, Linux
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

Description

About this item

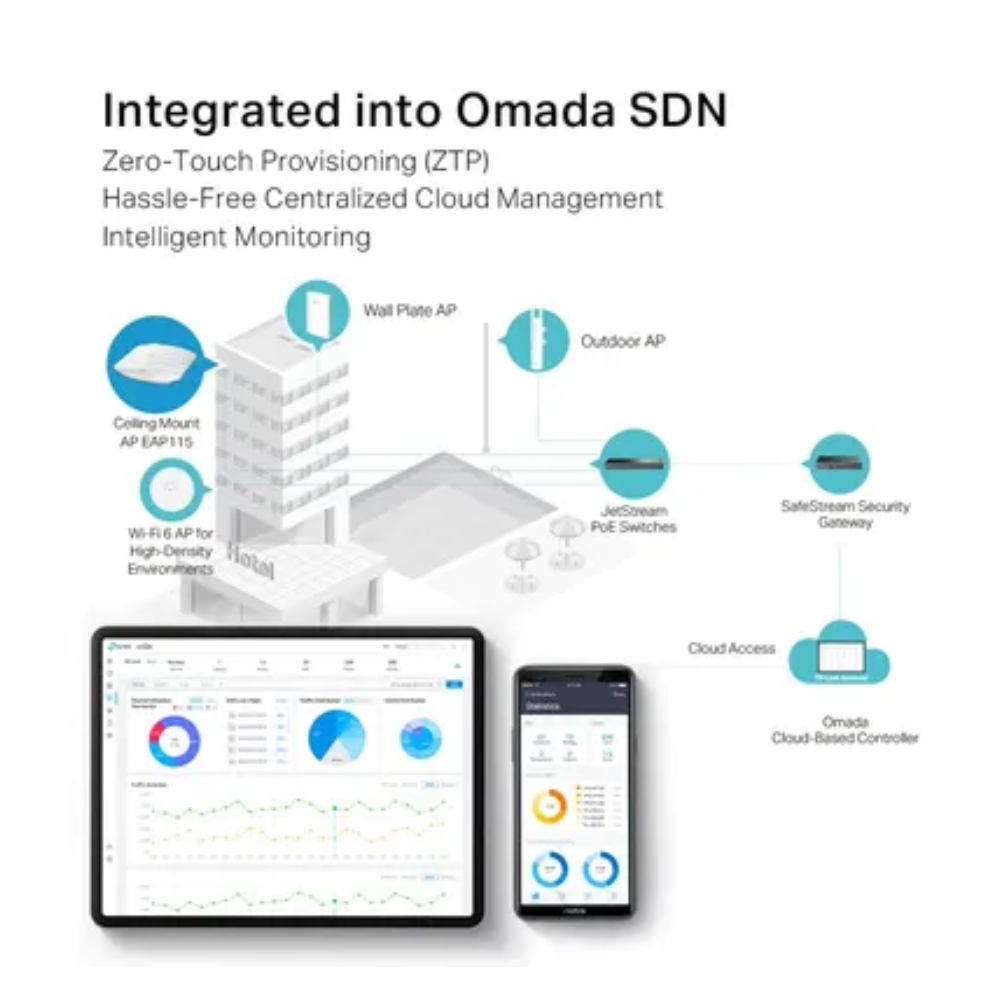

Integrated into Omada SDN — Zero-Touch Provisioning , Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management — Cloud access and Omada app for ultra convenience and easy management.
PoE Support — Supports Power over Ethernet for convenient deployment.
Easy Installation — Simple mounting design for easy attachment to a wall or ceiling.
Secure Guest Network — Along with multiple authentication options SMS-Facebook Wi-Fi-Voucher, etc. and abundant wireless security technologies.
Load Balancing — Limit the number of users on each access point and remove devices with weak reception to keep your Wi-Fi running at peak performance.
Scheduling — Automatically reboot the access point and turn on or off the Wi-Fi at the time you set.

Technical Details

Brand	‎TP-Link
Manufacturer	‎TP-link, For any queries, call on toll free no 1800 2094 168 or write us at support.in tp-link.com
Model	‎EAP115
Model Year	‎2016
Product Dimensions	‎18 x 18 x 4.75 cm; 300 Grams
Item model number	‎EAP115
Computer Memory Type	‎DDR3 SDRAM
Processor Count	‎1
Mounting Hardware	‎300Mbps Wireless N Ceiling Mount Access Point EAP115, Power Adapter, Mounting Kits, Installation Guide
Colour Screen	‎No
Voltage	‎12 Volts
Wattage	‎5 Watts
Batteries Included	‎No
Batteries Required	‎No
Data Transfer Rate	‎300 Megabits Per Second
Wireless Type	‎802.11n, 802.11b, 802.11g
GSM frequencies	‎24.5 GHz
Number of Ports	‎1
Connector Type	‎Wireless
Device interface – primary	‎Buttons
Includes Rechargable Battery	‎No
Remote Control Included?	‎No
Supports Bluetooth Technology	‎No
Programmable Buttons	‎No
Manufacturer	‎TP-link
Country of Origin	‎China
Imported By	‎TP-LINK India Private Limited,Green Industrial Park, Dongri Pada, Poman, Kaman-Bhiwandi Road, Vasai East, Palghar, Maharashtra – 401208
Item Weight	‎300 g

-58%

TP-Link EAP115 N300 Wireless Ceiling Mount Access Point,

TP-Link EAP115 N300 Wireless Ceiling Mount Access Point, (1)

Click to enlarge

Previous product

TP-LINK (EAP225) AC1350 Dual Band Wireless Ceiling Mount Access Point, POE powered, Gigabit LAN , High Performing Access Point ₹7,299.00

Back to products

Next product

TP-Link N300 Wireless N Wall-Plate Mounting Access Point, Simply Managed by Cloud Access and Omada app (EAP115-WALL) ₹2,340.00

HARDWARE FEATURES
Interface	1× Fast Ethernet (RJ-45) Port (Support IEEE802.3af PoE)
Button	Reset
Power Supply	802.3af PoE or external 9VDC/0.6A power supply
Power Consumption	2.8 W
Dimensions ( W x D x H )	7.5×6.8×1.2 in (189.4×172.3×29.5mm)
Antenna Type	Internal 2× 4 dBi Omni
Mounting	Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES
Wireless Client Capacity	100+**
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency	2.4–2.4835 GHz
Signal Rate	• 11n: Up to 300Mbps(dynamic) • 11g: Up to 54Mbps(dynamic) • 11b: Up to 11Mbps(dynamic)
Reception Sensitivity	• 300M: -71dBm@10% PER • 150M: -75dBm@10% PER • 54M: -78dBm@10% PER • 11M: -93dBm@8% PER • 6M: -92dBm@10% PER • 1M: -96dBm@8% PER
Wireless Functions	• Multiple SSIDs (Up to 8 SSIDs) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security	• Captive Portal Authentication • Access Control • Wireless MAC Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power	• CE: ≤19 dBm (EIRP) • FCC: ≤21 dBm

MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1,v2c
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• 300Mbps Wireless N Ceiling Mount Access Point EAP115 • Power Adapter • Mounting Kits • Installation Guide
System Requirements	Microsoft Windows 11/10/8/7/Vista/XP, Linux
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

Add to wishlist

Category: Access Point

Description
Reviews (0)
Shipping & Delivery

Brand	‎TP-Link
Manufacturer	‎TP-link, For any queries, call on toll free no 1800 2094 168 or write us at support.in tp-link.com
Model	‎EAP115
Model Year	‎2016
Product Dimensions	‎18 x 18 x 4.75 cm; 300 Grams
Item model number	‎EAP115
Computer Memory Type	‎DDR3 SDRAM
Processor Count	‎1
Mounting Hardware	‎300Mbps Wireless N Ceiling Mount Access Point EAP115, Power Adapter, Mounting Kits, Installation Guide
Colour Screen	‎No
Voltage	‎12 Volts
Wattage	‎5 Watts
Batteries Included	‎No
Batteries Required	‎No
Data Transfer Rate	‎300 Megabits Per Second
Wireless Type	‎802.11n, 802.11b, 802.11g
GSM frequencies	‎24.5 GHz
Number of Ports	‎1
Connector Type	‎Wireless
Device interface – primary	‎Buttons
Includes Rechargable Battery	‎No
Remote Control Included?	‎No
Supports Bluetooth Technology	‎No
Programmable Buttons	‎No
Manufacturer	‎TP-link
Country of Origin	‎China
Imported By	‎TP-LINK India Private Limited,Green Industrial Park, Dongri Pada, Poman, Kaman-Bhiwandi Road, Vasai East, Palghar, Maharashtra – 401208
Item Weight	‎300 g
