AC2600 Wi-Fi Range Extender

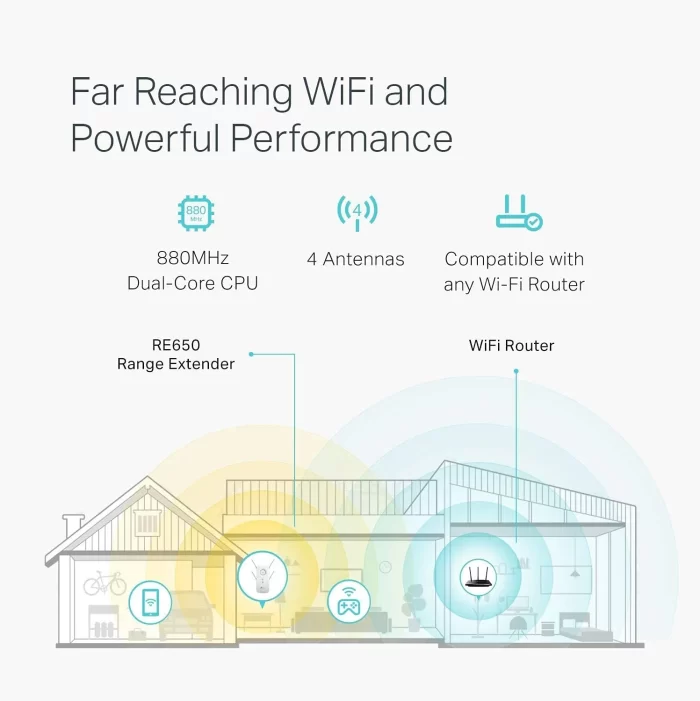

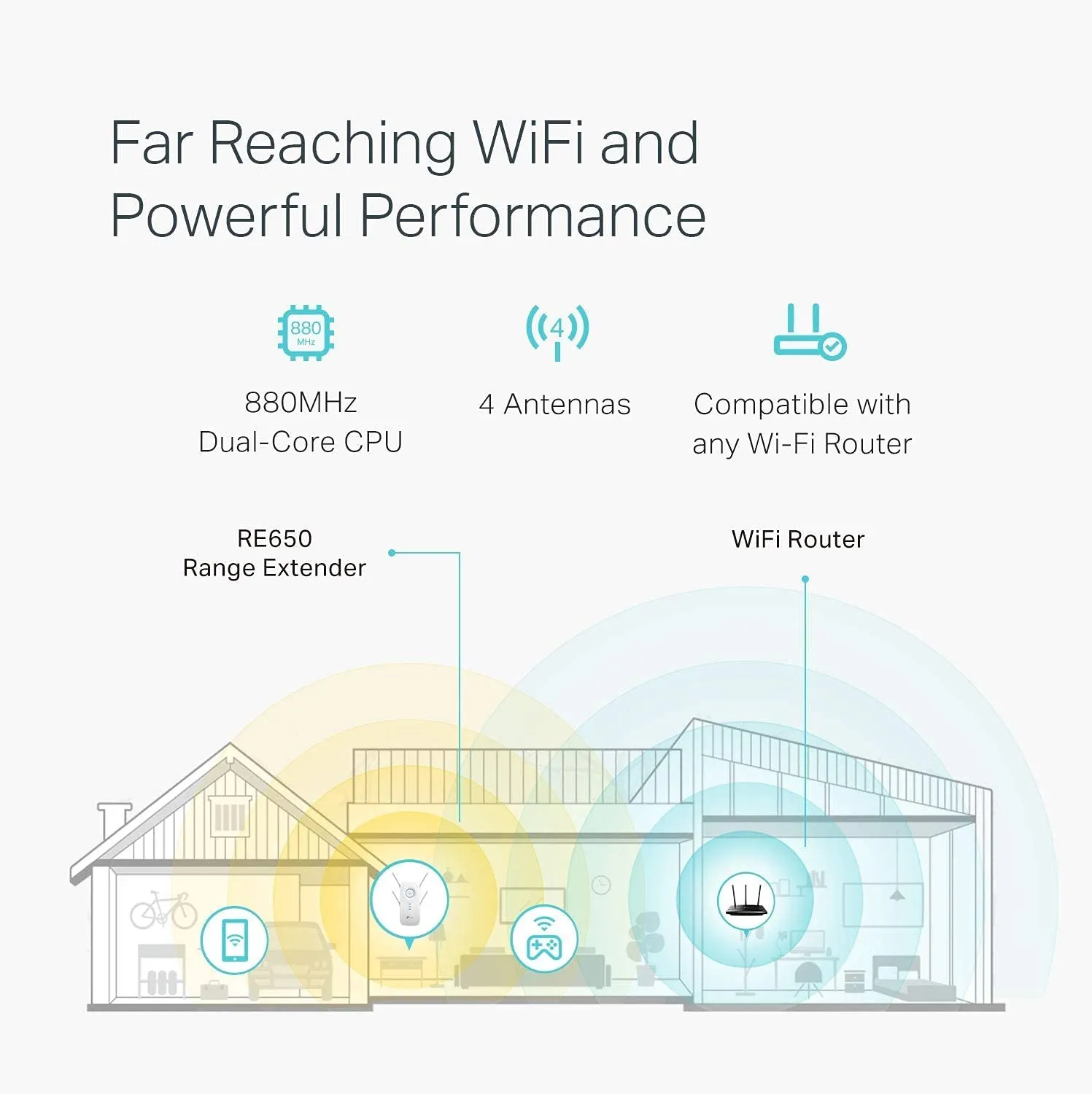

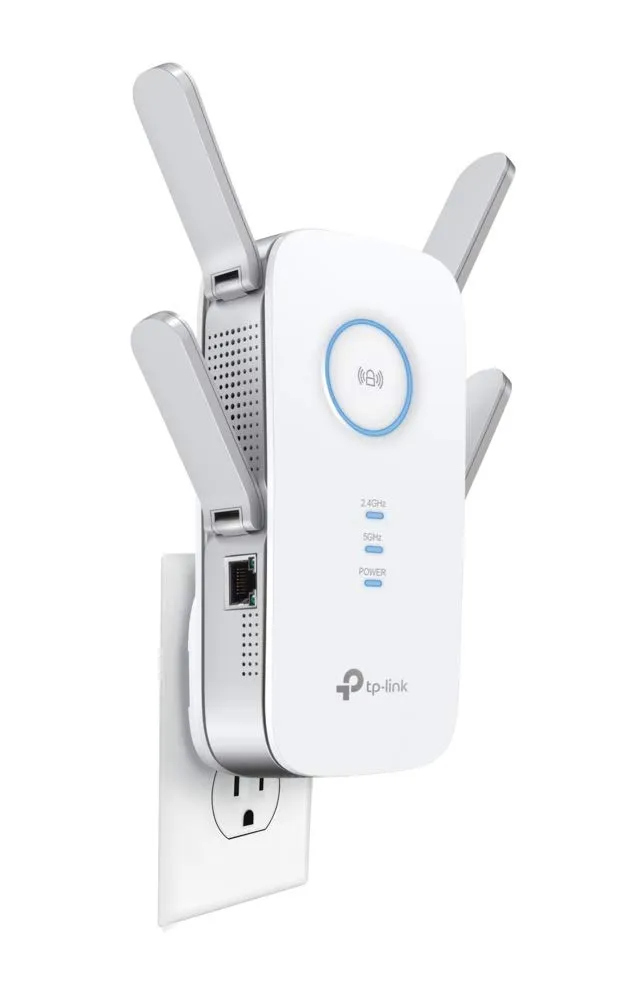

Superior Extended Range – Four fixed external antennas extend Wi-Fi coverage*
4-Stream for AC2600 Dual Band Wi-Fi – Simultaneous 800Mbps on 2.4GHz + 1733Mbps on 5GHz
4×4 MU-MIMO** – Simultaneously transfers data to multiple devices for 4x faster performance
Beamforming Technology – Send targeted Wi-Fi signal to individual devices for stronger connections

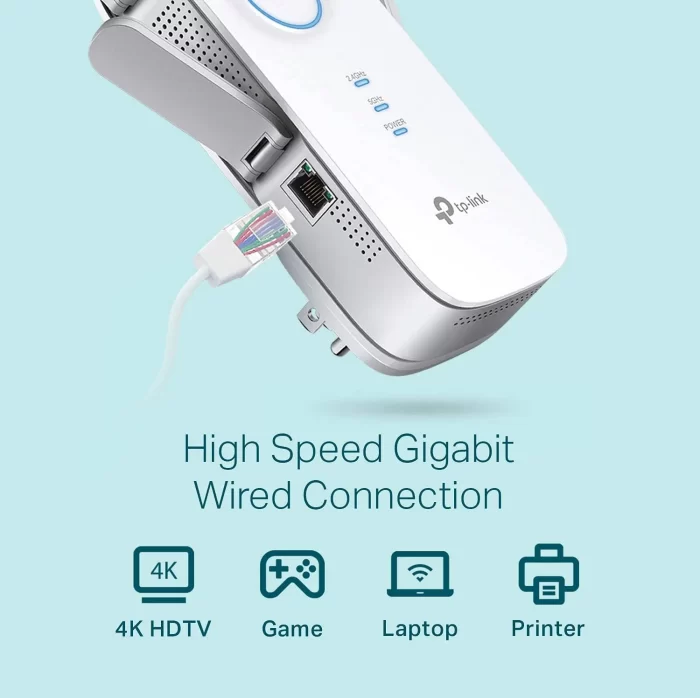

Gigabit Ethernet Port – Provide faster wired connections to smart TVs, computers and gaming consoles
Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device
Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point.

Working Modes

Range Extender/Access Point

HARDWARE FEATURES

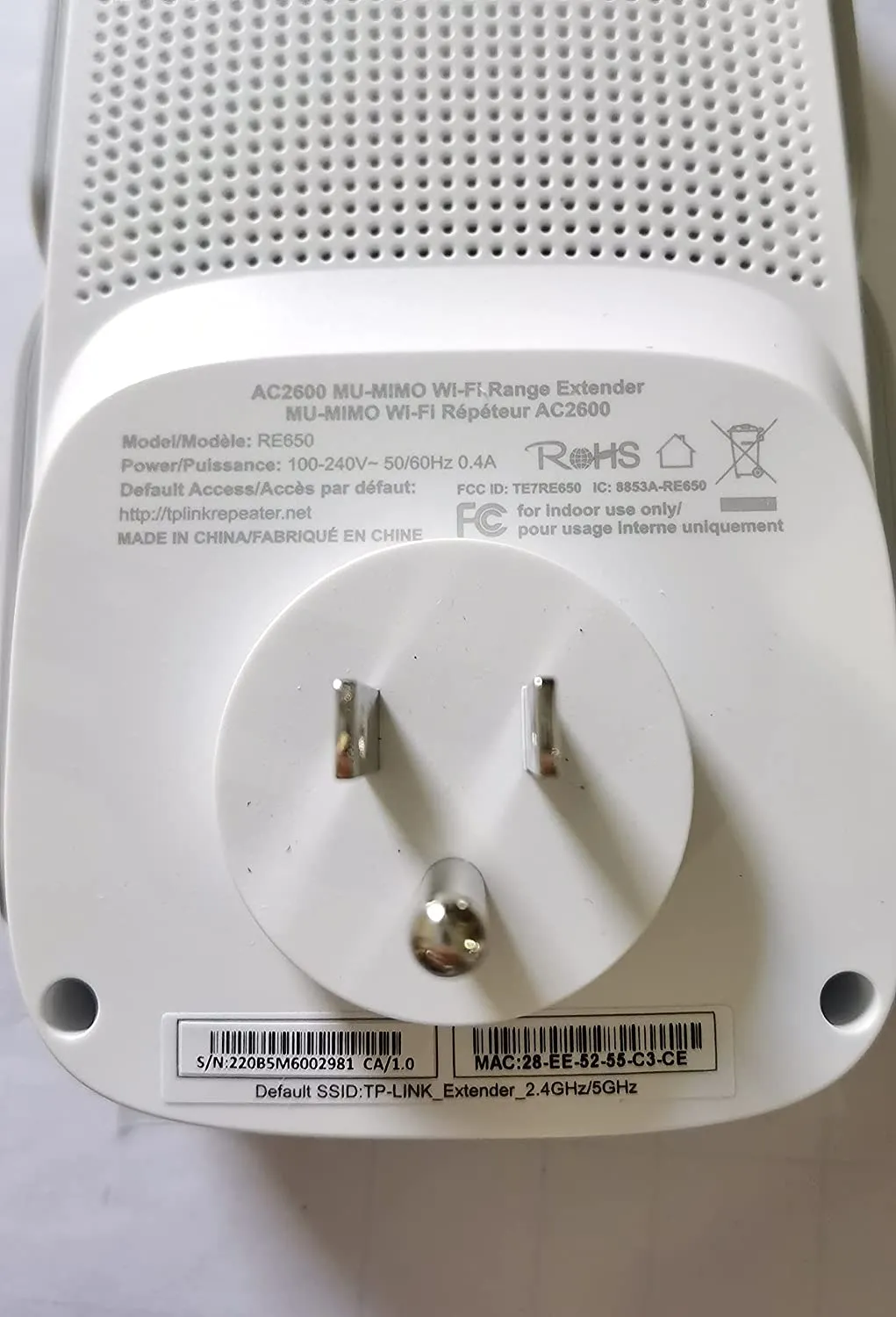

Plug Type	EU, UK, US
Standards and Protocols	IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Interface	1 x 10/100/1000M Ethernet Port (RJ45)
Ports	1 Gigabit Ethernet Port
Button	WPS Button, Reset Button, LED Button, Power Button
Input Power	100-240V~50/60Hz
Power Consumption	12W（max power consumption）
Dimensions ( W x D x H )	6.4 x 3.4 x 1.6 in. (163 x 86 x 40mm)
Antenna	4 x external

WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency	2.4GHz & 5GHz(11ac)
Signal Rate	5GHz:Up to 1733Mbps 2.4GHz:Up to 800Mpbs
Reception Sensitivity	5GHz： 11a 6Mbps:-96dBm@10% PER 11a 54Mbps: -78dBm@10% PER 11ac HT20 mcs8: -69dBm@10% PER 11ac HT40 mcs9: -66dBm@10% PER 11ac HT80 mcs9: -63dBm@10% PER 2.4GHz 11g 54M: -79dBm@10% PER 11n HT20 mcs7: -77dBm@10% PER 11n HT40 mcs7: -74dBm@10% PER
Wireless Modes	Range Extender/Access Point
Wireless Functions	Wireless Statistic Concurrent Mode boost both 2.4G/5G WiFi band Access Control LED Control Domain Login Function
Wireless Security	64/128-bit WEP WPA-PSK / WPA2-PSK
Transmission Power	<20dBm(2.4GHz) <23dBm(5GHz)

OTHERS
Certification	CE, FCC, RoHS
Package Contents	AC2600 Wi-Fi Range Extender RE650 Quick Installation Guide
Box Dimensions (W X D X H)	7.9 x 4.9 x 3.8 in. (202 x 125 x 97mm)
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

Description

Superior Extended Range – Four fixed external antennas extend Wi-Fi coverage*
4-Stream for AC2600 Dual Band Wi-Fi – Simultaneous 800Mbps on 2.4GHz + 1733Mbps on 5GHz
4×4 MU-MIMO** – Simultaneously transfers data to multiple devices for 4x faster performance
Beamforming Technology – Send targeted Wi-Fi signal to individual devices for stronger connections
Gigabit Ethernet Port – Provide faster wired connections to smart TVs, computers and gaming consoles
Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device
Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point***
