TP-Link 5 Port Gigabit Desktop Switch | 4 Port PoE 56W

₹4,299.00

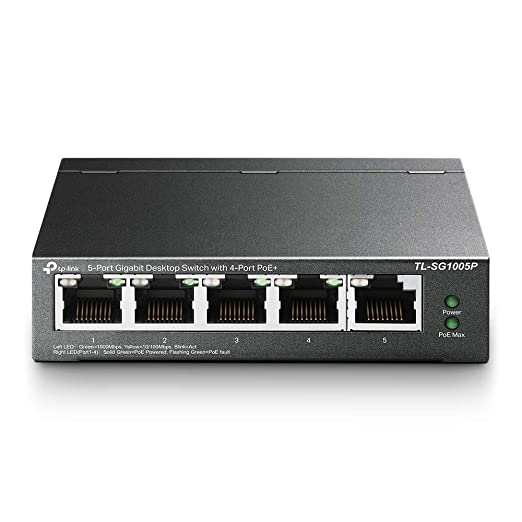

5-Port Gigabit Desktop Switch with 4-Port PoE

5× 10/100/1000 Mbps RJ45 ports
With four PoE+ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for all PoE ports^*
Up to 250m data and power transmitting range under Extend Mode^**

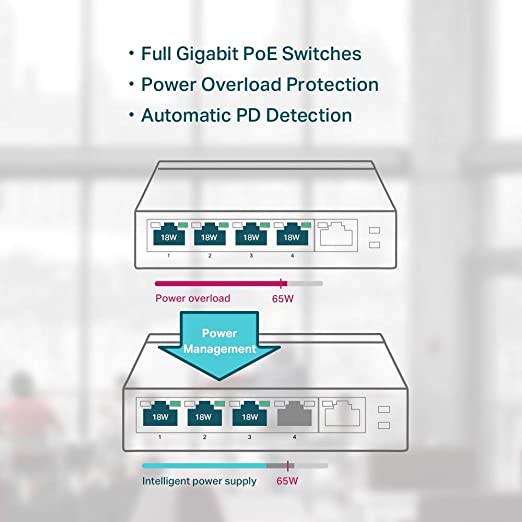

PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Plug and Play, no configuration and installation required

HARDWARE FEATURES
Interface	• 5× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
External Power Supply	External Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate	7.44 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 65 W
Mac Address Table	2K
Jumbo Frame	16 KB
Switching Capacity	10 Gbps
Dimensions ( W x D x H )	3.9×3.9×1.0 in (99.8×98×25 mm)
Max Power Consumption	• 3.44 W (220/50 Hz. no PD connected) • 74.49 W (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation	• 11.73 BTU/h (no PD connected) • 254.01 BTU/h (with 65 W PD connected)

Advanced Features

• Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
• PoE Auto Recovery (Ports 1-4)

Transfer Method

Store-And-Forward

Certification

FCC, CE, RoHS

Package Contents

• TL-SG1005P
• Power Adapter
• Installation Guide

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Description

brand	TP-Link
port number	5
Mounting Hardware	TL-SG1005P, Power Adapter, Installation Guide
color	black
Item Size LxWxH	10 x 9.8 x 2.5 cm

brand	TP-Link
the creator	TP-Link, TP-Link Technologies Co., Ltd, South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, PR China
model	TL-SG1005P
model year	2018
Product measurement	9.98 x 9.8 x 2.5 cm; 550 grams
Product model number	TL-SG1005P
hardware platform	PC
special feature	IEEE 802.3af compliant PDS, priority function, MAC address auto-learning and auto-aging, EEE802.3x flow control, compatible with 802.1p/DSCP QoS, IGMP snooping
Mounting Hardware	TL-SG1005P, Power Adapter, Installation Guide
voltage	220 Volts
wattage	65 Watts
battery included	no
Required battery	no
data transfer rate	1000 Megabits Per Second
data link protocol	IEEE 802.3af
port number	5
connector type	RJ45
has auto focus	no
Supports Bluetooth Technology	no
programmable button	no
the creator	TP-Link
importer	TP-LINK India Private Limited,Green Industrial Park, Dongri Pada, Poman, Kaman-Bhiwandi Road, Vasai East, Palghar, Maharashtra – 401208
Product weight	550 g

-39%

Click to enlarge

Previous product

JetStream 8 Port Gigabit L2 Plus Managed Switch with 2 SFP Slots, TL-SG3210 V1 by TP-Link ₹6,750.00

Back to products

Next product

Tp-Link TL-SG1024D Gigabit Switch ₹6,200.00

HARDWARE FEATURES
Interface	• 5× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
External Power Supply	External Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate	7.44 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 65 W
Mac Address Table	2K
Jumbo Frame	16 KB
Switching Capacity	10 Gbps
Dimensions ( W x D x H )	3.9×3.9×1.0 in (99.8×98×25 mm)
Max Power Consumption	• 3.44 W (220/50 Hz. no PD connected) • 74.49 W (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation	• 11.73 BTU/h (no PD connected) • 254.01 BTU/h (with 65 W PD connected)
